1. Introduction to the Solution
Unlike mass-produced sedan cars, the tricycle (three-wheeler) industry focuses heavily on diverse models, including heavy-load cargo tricycles, enclosed passenger vehicles (E-Rickshaws), and agricultural dump trucks. Therefore, a flexible and robust tricycle assembly line is not just about transportation; it is the backbone of efficient production.
Our tricycle assembly line solution is designed based on practical workshop conditions in developing countries. We focus on durability, ease of maintenance, and maximizing the utilization of factory space, ensuring that even factories with limited technical staff can achieve standardized mass production. Whether you are building a new three-wheeler production line from scratch or upgrading an existing manual workshop, our approach prioritizes what works on the shop floor—not what looks good in a brochure.
2. Core Conveying System: Rugged and Space-Saving
The heart of any tricycle assembly line is the conveying system. For heavy tricycles, the system must handle loads exceeding 500kg per station.

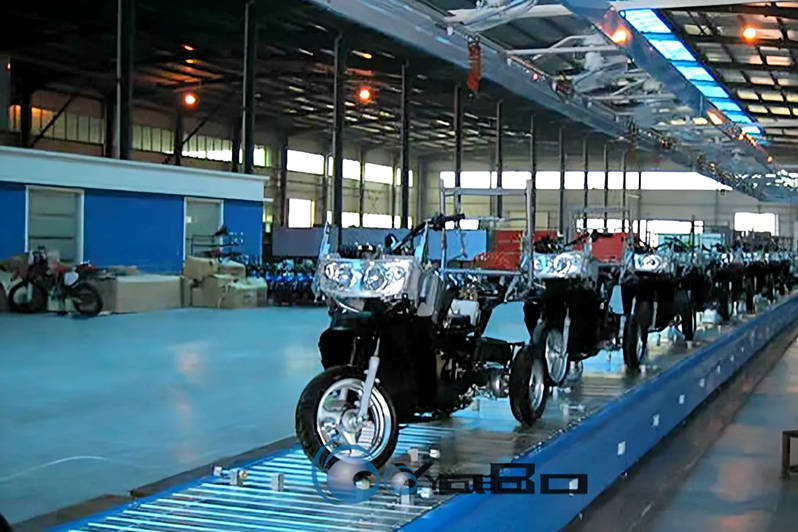

Plate & Chain Conveyor (The Main Line):
- Heavy-Duty Design: We utilize reinforced steel plate chains. Each link is made of high-strength carbon steel, designed to withstand the weight of fully welded tricycle frames and large battery packs. This is the same plate chain conveyor system used in 80% of three-wheeler factories worldwide.

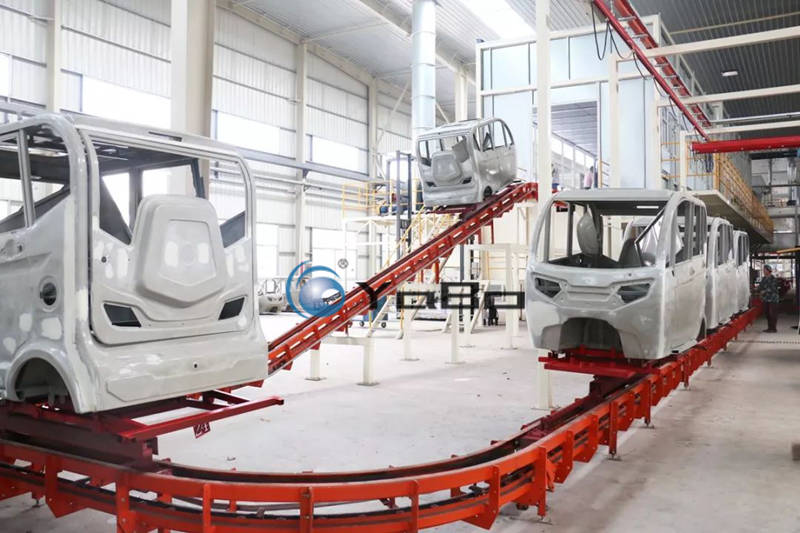

- Turning & Space Optimization: As shown in the practical application scenario, the tricycle assembly line is not a straight line. We use curved track designs and elevation-changing mechanisms (like small inclines) to snake through the factory. This serpentine layout allows factories with limited square footage to accommodate a long assembly process without needing a massive rectangular workshop.
Hydraulic Lift Assist (The “Red Machine” in the Image):
- Ergonomic Support: A critical component often missing in cheap assembly lines is the hydraulic lift table. In the image, you can see a dedicated station with a red hydraulic lift. This device assists workers in flipping or lifting heavy sub-assemblies (like front-end assemblies or dashes) to the correct height for installation. This significantly reduces occupational injuries like back strains—a major concern for factory owners struggling with labor retention.
Manual Turntables:
- Simple but effective. At the corners or specific stations, manual rotation tables allow a single worker to rotate a heavy vehicle body 90 or 180 degrees with minimal effort, ensuring that every side is accessible for bolting. No motors, no sensors, no breakdowns—just reliable mechanical advantage.
3. Modular Fixturing: Adapting to Different Models
One of the biggest challenges in tricycle assembly line operations is model diversity. You might produce a 1-ton cargo tricycle in the morning and a 500kg passenger tricycle in the afternoon—sometimes even on the same production line.
- Universal Clamping System: Our solution incorporates modular jigs and fixtures. Instead of welding the frame directly to the line, we use adjustable V-blocks, toggle clamps, and pin locators that accommodate multiple wheelbases.
- Quick Changeover: If the wheelbase changes, the operator simply loosens the knobs on the fixture, slides the stops to the new position, and tightens them. This process takes less than 5 minutes, whereas traditional welded jigs would require a team of workers and welding equipment to modify. For manufacturers running both electric and fuel models on a single tricycle assembly line, this flexibility is the difference between profit and idle time.
4. Practical Assembly Process Flow

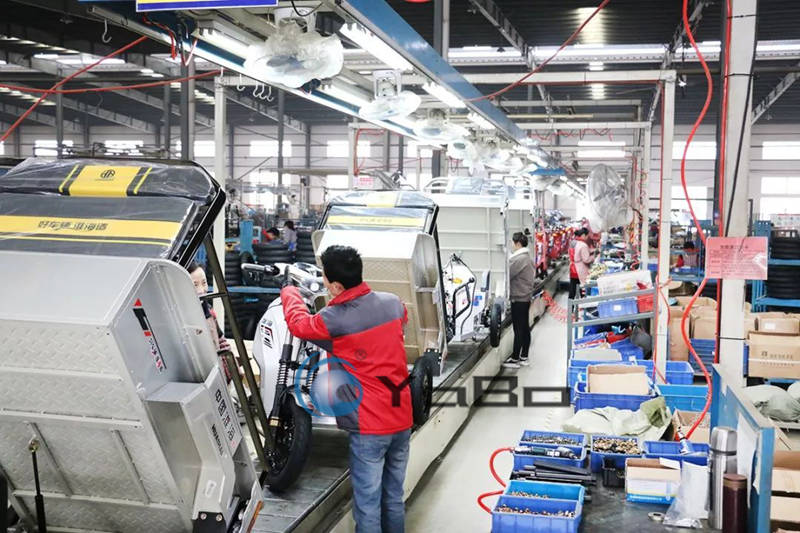

A typical tricycle assembly line with 13–18 workstations operates as follows:
- Station 1-3 (Bottom Assembly): The bare frame is placed on the line. Workers install the main beam, differential housing, and the first set of wheels. On heavier models, the assembly line chain speed is slowed to give workers more time for torque-critical bolts.
- Station 4-6 (Mid Body): As the frame moves along the curved track, workers mount the fuel tank or battery compartment. The hydraulic lift assists in lowering heavy engine blocks or battery packs into place.

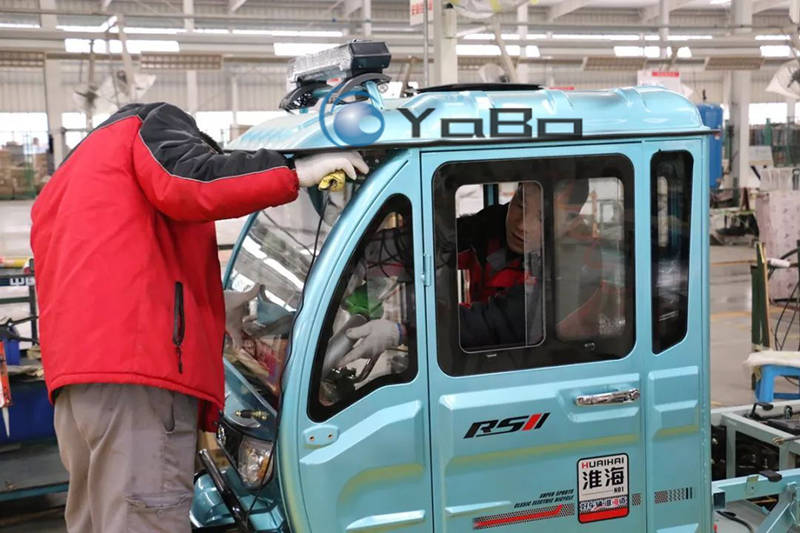

- Station 7-9 (Upper Structure): This is where the cab/enclosure is installed. The open design of the three-wheeler assembly line allows access to the roof and door hinges from both sides.
- Final Assembly: Wiring harnesses are routed, seats are mounted, and the steering column is aligned. Before off-line, a final inspection checklist is completed at the end of the tricycle production line.
5. Why Choose a Semi-Automatic Approach for Your Tricycle Assembly Line?
While full automation sounds appealing in trade show presentations, for the tricycle and auto rickshaw market, a semi-automatic approach is far more realistic and profitable:
- Lower Investment: Avoiding expensive robotics keeps the initial cost down, protecting your ROI. Most of our clients recover their assembly line investment within 12–18 months through labor savings alone.
- High Flexibility: Human workers are far better at handling the slight variations and custom requests that tricycle dealers often demand—different tire sizes, extra cargo racks, custom paint jobs. A fully automated production line would jam or reject these variations.
- Skill Retention: Your existing workforce doesn’t need to be retrained as highly skilled robotics technicians. They already know how a tricycle goes together; the assembly line simply helps them do it faster and with fewer mistakes.
Conclusion
A professional tricycle assembly line is not about having the most computers—it is about having the right flow. By integrating sturdy plate chain conveyors, ergonomic hydraulic lifts, and flexible modular fixtures, we help manufacturers increase their output from 30 units per day to over 80 units per day, all while keeping quality consistent and the factory floor safe.
Whether you call it a tricycle assembly line, a three-wheeler production line, or an auto rickshaw manufacturing line—the goal is the same: build more vehicles, with fewer people, in less space, at a lower cost. That is the solution we deliver.
