1. Industry & Line Overview
The hoverboard (two-wheel self-balancing personal transporter) industry features a typical long-tail market structure. It covers a wide range of product segments including basic hoverboards, adult self-balancing transporters, kids’ hoverboards, off-road self-balancing vehicles and many other variants, resulting in a huge volume of product SKUs. Orders for a single model are medium-sized; no single model can sustain long-term mass production. Product iteration cycles are short, with fast updates to the mechanical structure, battery specifications and motor solutions. Different series show obvious discrepancies in total weight, housing profile, battery pack dimensions and wheel assembly configuration, leading to low cross-model compatibility. Multi-SKU mixed production and frequent model changeovers are normal practices in assembly workshops, so a hoverboard production line must deliver good compatibility for rapid product switching.

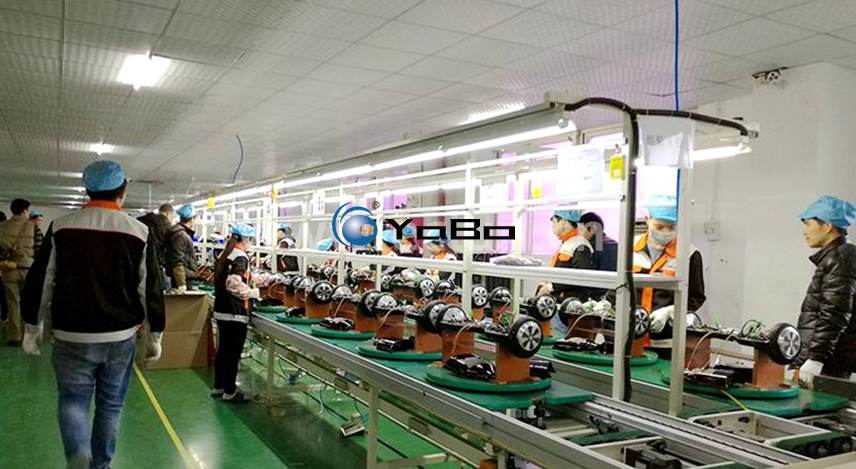

This hoverboard assembly line is a circular speed-multiplying chain circulation assembly system, composed of speed-multiplying chain conveyor tracks, tooling pallets, rotary tooling bases, drive mechanisms and a lower return conveyor line. Work-in-progress components are carried by tooling pallets and circulate along the loop. Operators at each station complete assembly processes following the takt time. The rotary table mounted on each tooling pallet enables free multi-angle rotation of workpieces, which facilitates multi-directional manual operations such as screw fastening and wiring. The speed-multiplying chain realizes material transfer via chain speed differential. Tooling pallets can be densely arranged. The line features high rigidity, strong load capacity and stable operation. It supports assembly and online inspection of heavy components including hoverboard motors and battery packs, meeting the demand of mixed production for multiple models. It serves as a dedicated solution for hoverboard production lines.
2. Assembly Process
The whole line is planned by segmented assembly workflows, and the layout of this hoverboard assembly line can be adjusted flexibly. Typical workstation sequence:
- Loading Station: Tooling pallet arrives. The lower housing of the hoverboard is positioned and fixed. Product tracking barcode is bound to establish traceability for each process.
- Chassis Pre-assembly Station: Install battery pack, main control PCB and motor mounting bracket, complete locking of main chassis screws.
- Powertrain Assembly Station: Fit left and right drive motors, mount wheel hubs and wheel assemblies, route sensor harnesses.
- Wiring Station: Complete wiring connection between motors, batteries, Hall sensors and charging ports; arrange and secure harnesses with cable ties.
- Online Functional Test Station: Power on to test power supply circuits, signal communication and self-balancing control functions. Mark defective units and transfer them to rework channels.
- Housing Closing Station: Fasten upper housing and cosmetic trims, lock peripheral housing screws.
- Unloading Station: Finished products are unloaded, then transferred to aging test, visual inspection and packaging procedures.

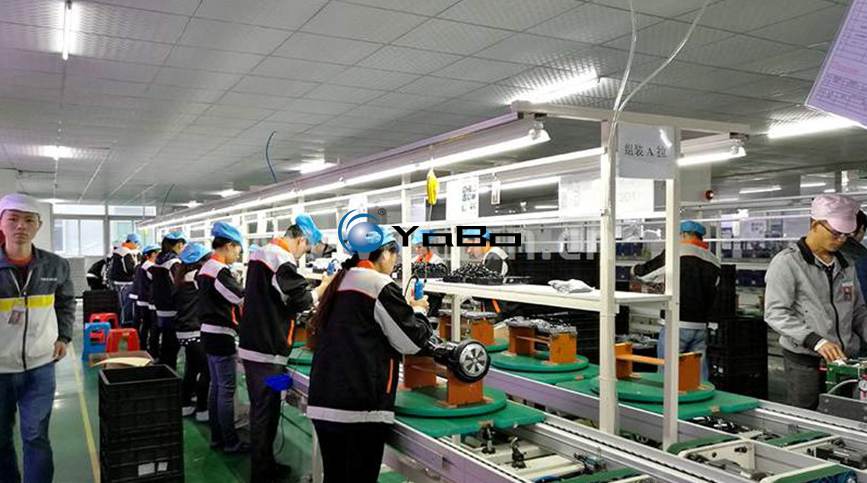

Each workstation is equipped with adjustable workbenches, pneumatic tool hangers and process document racks. The takt time of the hoverboard production line is determined by the bottleneck process. Production capacity can be adjusted by adding or removing workstations and changing the running speed of the speed-multiplying chain. Dual-side workstation layout is adopted to balance workload on both sides and shorten cycle time per unit.
3. Customizable Parameters (Based on Speed-Multiplying Chain Standard)
| Parameter Item | Reference Value / Custom Range |
|---|---|
| Line Type | Circular dual-section speed-multiplying chain (upper main conveying + lower return line) |
| Tooling Pallet Size | Standard 400×400 / 500×500 mm, customized according to hoverboard profile |
| Tooling Pallet Pitch | 400–800 mm adjustable |
| Running Speed | 0–15 m/min, variable frequency speed regulation |
| Number of Workstations | 8–20 stations, can split or add stations according to process |
| Drive Type | Segmented independent motor drive, chain transmission |
| Speed Multiplication Ratio | Standard 2.5:1 / 3:1 |
| Single Point Load Capacity | 50–100 kg (including tooling pallet weight) |
| Workstation Layout | Single-sided / double-sided station arrangement, rotary tooling base optional |
| Electrical Control | PLC + touch screen, photoelectric sensor positioning & stopping |
| Conveyor Chain | Double-row heavy-duty speed-multiplying chain with wear-resistant guide rollers |
| Tooling Positioning | Pneumatic stopper / mechanical positioning, repeat positioning accuracy ±0.3 mm |
All parameters above can be re-calculated and customized according to the hoverboard dimensions, gross weight, production takt and workshop floor space. This hoverboard assembly line supports non-standard design on demand to meet the construction requirements of hoverboard production lines for different customers.
