The Automobile Engine Assembly Line is a fully customizable, non-standard production system built around a power and free accumulating pallet conveyor backbone. It transfers automotive gasoline engines from sub-assembled components through final assembly to offline testing. Core modules—cylinder blocks, crankshafts, cylinder heads, and timing components—are pre-assembled in a dedicated section, then transferred to the main conveyor line for final build and testing. This two-section layout prevents bottlenecks and improves throughput.
All specifications below are baseline references—every module can be engineered to your exact engine model, workshop layout, and production targets.
Process Flow: From Sub-Assembly to Final Assembly
Automotive engine assembly is divided into two stages:
- Sub-assembly: Major systems built separately—cylinder block with crankshaft and pistons, cylinder head with valves and lifters, timing drive, and fuel system (fuel rail, injectors, throttle body).
- Main line assembly: Pre-assembled modules brought together on the conveyor main line. Fastening with high-strength bolts under controlled torque; no welding required.
After final assembly, each engine enters Oiling → Testing → Oil Draining: a measured amount of oil is injected, then the engine is run on a cold or hot test bench to verify power, torque, sealing, and NVH. Test time: 3–5 minutes per unit. Failed units route to rework; passed units are drained and packaged.

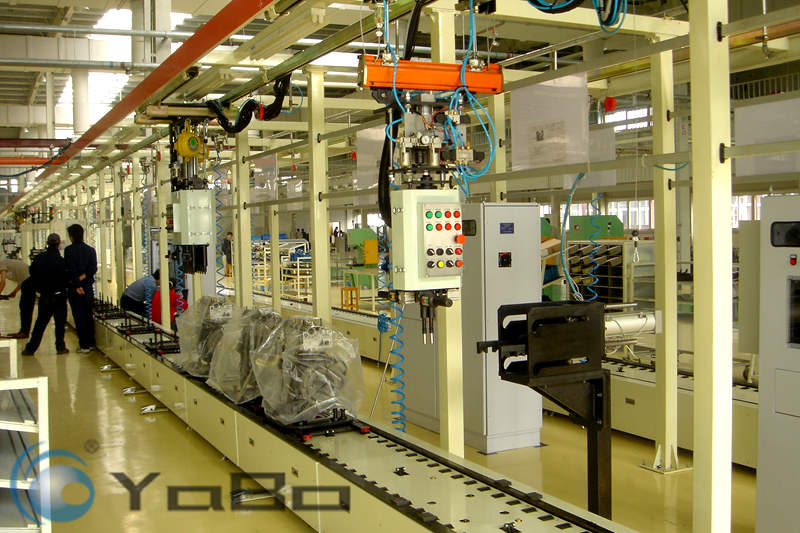

Line Architecture: Power & Free Pallet Conveyor + Tooling + Positioning

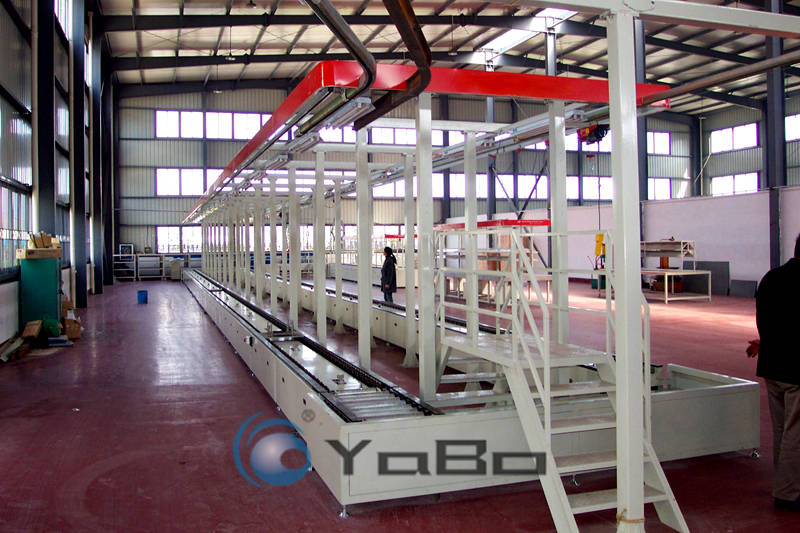

This line uses a segmented power and free closed-loop pallet conveyor architecture:
- Dual independent conveyor loops: Pre-assembly and final assembly run on two separate closed-loop pallet lines. Semi-finished engines transfer without congestion.
- Dedicated tooling pallets: Engine-specific fixtures mounted on pallets. Multi-point clamping locks the block in place—no shift, no vibration, machined surfaces protected. Fixture design is fully customized per engine housing.
- Stopper + locating pins: Pneumatic stoppers and hardened pins at each station. Repeatability ±0.2mm, meeting head bolt and bearing cap tightening precision.
- Zero-pressure accumulation: Pallets accumulate without pressure if one station stops. Rest of the line keeps running.
Station Configuration
| Station | Key Operations |
|---|---|
| Block Loading | Overhead servo torque wrenches, standardized fastening |
| Crankshaft & Piston | Crankshaft, conrods, pistons, oil pump |
| Cylinder Head | Gasket alignment, head placement, torque-to-yield tightening |
| Timing & Ignition | Camshaft(s), timing chain/belt, tensioner, spark plugs, coils |
| Fuel & Intake | Injectors, fuel rail, throttle body, intake manifold |
| FEAD & Exhaust | Alternator, starter, water pump, AC compressor, exhaust manifold, heat shields |
| Cold/Hot Test | Leak check, power/torque verification, NVH |
| Packaging | Oil drain, visual inspection, engine dressing, crating |

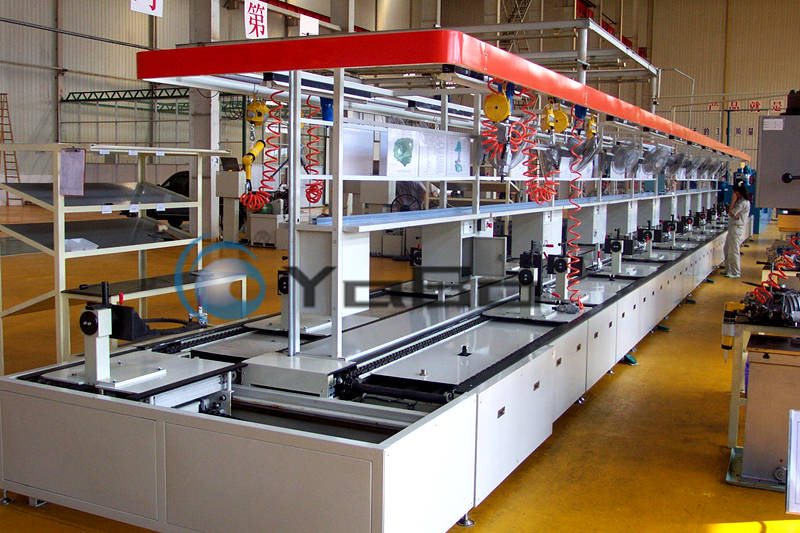

All stations: overhead torque tools, tiered parts shelves, LED task lighting, exhaust extraction.
Technical Specifications (Customizable)
| Item | Baseline Spec | Custom Options |
|---|---|---|
| Conveyor Type | Power & free accumulating pallet conveyor, closed-loop | Loop length, single/double/parallel lanes |
| Line Width | 800 / 1000mm | 600–1200mm per engine size |
| Pallet Size | 800×1000mm | Customized to engine footprint |
| Pallet Load Capacity | 200kg (Standard) / 300kg (Heavy-duty) | Up to 500kg for V6 applications |
| Conveyor Speed | 2–10 m/min, VFD | Fixed speed or servo-controlled |
| Positioning Accuracy | ±0.2mm | Higher precision on request |
| Cycle Time | Sub ≤45s, Final 90–180s | Recalculated per target output |
| Engine Weight Range | 80–180kg (dry, gasoline) | Up to 250kg for diesel variants |
| Applicable Engines | Inline 3 / Inline 4, 1.0–2.5L gasoline | V6 and diesel optional |
| Power / Air | AC 380V, 0.5–0.7 MPa | Voltage and pressure per local standard |
| Annual Capacity | 30,000–150,000 units | Scaled to customer requirement |
Customization Options
As a non-standard equipment manufacturer, every line is built to order:
- Fixtures: V-blocks, profiled locators, pneumatic quick clamps per engine block. Quick-change plates < 10 min.
- Tightening: Servo nutrunners, multi-spindle machines, angle-controlled. Torque data → MES.
- Testing: Leak test, cold/hot bench, automatic pass/fail with data archive.
- Controls: PLC (Siemens / Mitsubishi / Omron / Rockwell), HMI, ANDON, MES integration, Poka-Yoke.
- Environment: Oil guards, drip trays, sealed rails, soundproof test enclosures.
- Loading: Overhead crane, lift table, AGV docking.
- Line scale: 6–24 stations, any length, any layout (straight, L-shape, U-shape, loop).
Applications
- Passenger car & light commercial gasoline engine final assembly
- Hybrid powertrain / range-extender engine assembly
- Engine remanufacturing lines
If you have a specific engine model (displacement, block drawing, target capacity), send it over—we’ll return a line layout, station list, and quotation within 48 hours. No off-the-shelf guesswork; every proposal is engineered from your actual data.
